Key Features

1. Model: B2033-LF
2. Capacity: 20KVA
3. Input Voltage: 380±25% VAC
4. Output Voltage: 380/400/415±1% VAC
5. Power Factor: 0.8/0.9
6. Waveform: Sine Wave, THD < 3%
7. Inverter: IGBT-based
8. Display: General LCD
9. Noise Level: <60 dB (within 1 meter)
10. Warranty: 1 Year

Description

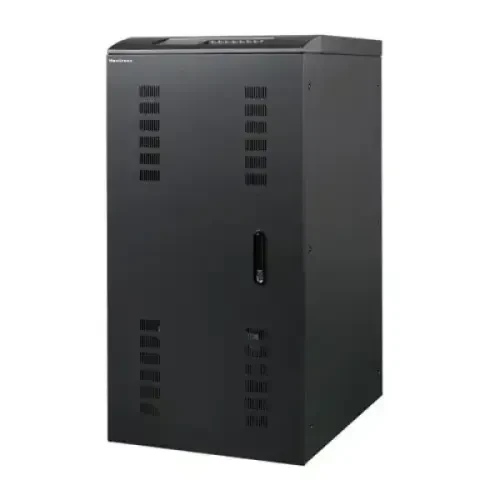

The MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS is engineered to provide reliable and efficient power protection for critical equipment. With a robust capacity of 20KVA, it ensures continuous power supply during outages, safeguarding sensitive devices from voltage fluctuations and interruptions.

Equipped with an IGBT-based inverter and output isolation transformer, the B2033-LF delivers a pure sine wave output with a Total Harmonic Distortion (THD) of less than 3%, ensuring compatibility with a wide range of electronic equipment. The UPS operates within a wide input voltage range of 380±25% VAC and offers selectable output voltages of 380/400/415±1% VAC, providing flexibility to meet diverse power requirements.

The system features an LCD display for real-time monitoring and diagnostics, and its forced air cooling system ensures optimal performance even under demanding conditions. The B2033-LF is designed to handle overloads up to 125% for 10 minutes and 150% for 30 seconds, making it suitable for environments with fluctuating power demands.

With a system voltage of 384 VDC, the UPS offers extended backup times, depending on the connected load. It also includes communication ports (RS232/RS485) for remote monitoring and management, enhancing its versatility in various applications.
